Configuration

General

The Configuration of a monitoring project is very similar to the basic project configuration, but there are a few special settings for this project type. The following settings are for your information only and can be changed by XTC administrators only:

• Data Persistence (how long certain data, like Execution History, will be persisted), and
• Execution Environment (IP addresses of the machines where monitoring scenarios are running).

Dynamic Repository Branch

Another specialty for Repository configuration is that you can define the branch to use by either specifying its name (static branch) or by defining a URL of a resource from which the branch name can be extracted dynamically using a regular expression. (This may be useful if you want to make the used test scenario code dependent on your currently deployed app version.)

Scenario Defaults

On the Scenario Defaults tab in Configuration you can define default settings to be used for all monitoring scenarios. These defaults can be overwritten for each individual scenario. To edit scenario defaults, use the edit button on the right of any section:

Notification Lists

XTC uses a flexible approach to configuring when an alert is triggered and to whom notifications are sent. Instead of having a single list of recipients where all recipients are notified in every case, you can define your own lists of who gets notified and how (notification lists) and under which circumstances these alerts should be sent (quality sensors).

Notification lists are managed globally for a project, on the project configuration’s Notification Lists tab.

In a simple project, the setup of notification lists might look like this:

• On-Call Team: Evaluates scenario failures and takes necessary actions (perhaps alerting other people).
• Monitoring Dev Team: Maintains the monitoring scenarios.
• App Dev Team: Addresses performance issues in the monitored application.

The default Reply-To Address for all notification e-mails can be defined in the General settings on the Notification Lists tab. If none is set this will be a no-reply service address, so we recommend using any sensible contact in your project for this.

Defining a Notification List

To add a new notification list, go to the Notification Lists tab in Configuration and click New at the top right. You will be asked to set a name for your list and, if needed, add a description.

The newly created notification list will then show up in the overview table.

By clicking its context menu you may edit the name and description defined before, duplicate it in order to create another similar list or delete it (you will be asked for confirmation). You can also pause or disable notifications for a single list here.

To view and edit the subscribers and check assignments of a notification list, either click the list’s name or select view from the context menu.

To add new subscribers to a notification list, go to the Subscribers tab in the list detail view and click Add. You may add XTC user subscribers (existing XTC account with predefined contact data) or custom subscribers (custom mail address or phone number). For each subscriber you may choose whether to send notifications via e-mail or text message (or both). You can also add a slack channel to the subscribers list. The subscriber data can be edited anytime, subscribers can also be deactivated or removed entirely.

Notification List Assignments

When you are finished configuring a notification list, you can use it in quality sensors. You can check which quality sensors the notification list is assigned to in the notification list’s details page on the Assignments tab. You can use this to check which alerts you might affect by changing any notification list.

Pausing or Disabling Notifications

On the project configuration’s Notification Lists tab, you can globally disable and enable notifications for the whole project.

To pause notifications (and, if you configure this, pause scenario execution) for a predefined period in time you may configure Quiet Periods.

To enable or disable notifications or define notification pauses for any single notification list you can use this list’s context menu in the notification lists overview. The list’s notification state will be indicated by a symbol in the overview table.

Quality Sensors

A quality sensor defines the circumstances under which an alert is to be sent and which user groups are alerted. Because these metrics are applicable to multiple scenarios, they are configured project-wide, and then applied to test scenarios as needed. Multiple quality sensors can exist in a project, and multiple quality sensors can be assigned to any scenario.

Defining a Quality Sensor

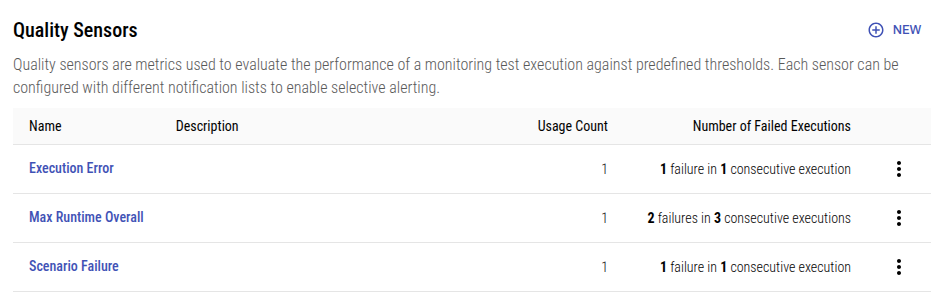

To add a new quality sensor, go to the Quality Sensors tab in Configuration and click New at the top right. You can define a name, description, and a number of failed executions for a number of consecutive executions (for example, 1/1 raises an alert on every failure, 3/3 raises an alert if the scenario fails 3 times in a row, 3/10 raises an alert if 3 out of 10 consecutive executions failed).

The quality sensor will then appear in the overview table. By clicking its context menu you may edit the basic quality sensor data defined before, duplicate it in order to create another sensor with similar settings, or delete it (you will be asked for confirmation). To view and edit the quality sensor details (e.g. the success metrics or notification list to be alerted on failure), either click the quality sensor’s name or select view from the context menu.

Adding Metrics to a Quality Sensor

In the quality sensor’s details’ Configuration tab, you can add metrics, which are basically a set of conditions that must all be met or the scenario will fail.

To add metrics, go to the quality sensor detail view’s Configuration tab and click Add in the Metrics section. You will be asked to select criteria from these groups:

• General: Check for execution errors or scenario failures.
• Event: Check the timing of page load events (DomContentLoaded, First Contentful Paint, First Paint, Load Event).
• Web Vitals: Check user experience criteria (Cumulative Layout Shift, First Contentful Paint, First Input Delay, Interaction to Next Paint, Largest Contentful Paint, Time to First Byte).
• XLT: Check for basic runtime limits (for transactions, actions or requests) and request errors.

Depending on the selected metric, the threshold you will be asked to select will be just “on occurrence”, a time in milliseconds or some more specific parameter. All defined metrics can be edited or deleted afterwards using their context menu.

Not meeting one of the defined thresholds may cause an alert to be raised (remember that this happens only after the number of consecutive failures you set before), which is then sent to the set of notification lists defined below.

Managing Notification Lists of a Quality Sensor

The set of notification lists of a quality sensor defines who will be alerted when the given quality sensor fails.

To add one of the previously configured notification lists to the quality sensor, go to the quality sensor detail view’s Configuration tab and click Add in the Notification Lists section. You will be asked to select one of the configured notifications lists.

To remove a notification list from a quality sensor, go to the quality sensor detail view’s Configuration tab, and click Remove in the notification list’s context menu. Note that this only causes the quality sensor to stop sending alerts to this list - to actually delete the notification list, go to the Notification Lists tab of the configuration.

Quality Sensor Assignments

When you are finished configuring quality sensors, you can assign them to your scenarios as needed. You can check which scenarios the quality sensor is assigned to in the quality sensor’s details page on the Assignments tab. You can use this to check which scenarios’ executions you might affect by changing any quality sensor.

In a simple project, the quality sensors might look like this:

• Preparation: Verifies that the scenario is ready to run and notifies the Monitoring Dev Team list if necessary. Blocks the execution of the following quality sensors. (e.g. git download failures, compile issues and other fatal errors)
• Stability: Verifies that the scenario has run successfully and otherwise notifies the On-Call Team list and possibly the Monitoring Dev Team list. Blocks the execution of the following quality sensors. (e.g. scenario errors)
• Performance: Verifies that selected performance parameters are within specified limits. If not, notifies the App Dev Team. (e.g. scenario failures, such as exceeding thresholds for request runtimes, web vitals, DOM events)

All of these quality sensors are then assigned to each scenario in this order.

If you need a specific behavior for a single or subset of scenarios, you must define a separate quality sensor and/or notification list.
